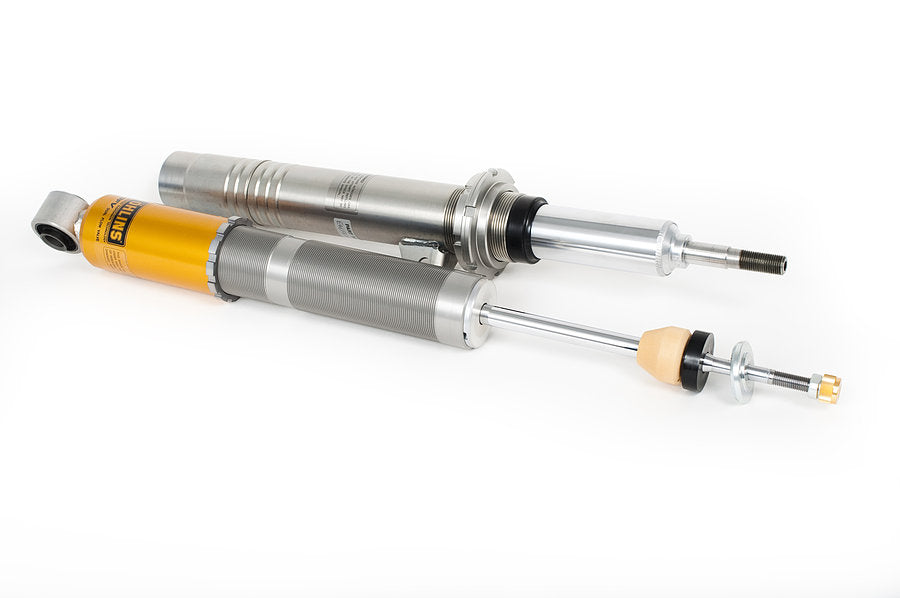

Öhlins Road & Track coilover suspension BMW M3 (E46)

For more than 40 years, we have been committed to high-end motorsport and the most modern solutions in chassis technology. This long-standing tradition and experience is now also available for road cars all over the world. The goal of the development was clear from the beginning - outstanding Handling without compromising on comfort in everyday life. The time for compromises is over. The sophisticated lightweight construction with many aluminum parts characterizes our products, as does the salt spray test according to ISO 9227 and the 2-year, worldwide factory guarantee.

General characteristics:

• DFV technology (double-flow valve)
• Individually adjustable lowering
• Fully disassemblable for maintenance and repair
• salt spray test according to ISO 9227
• 2-year warranty

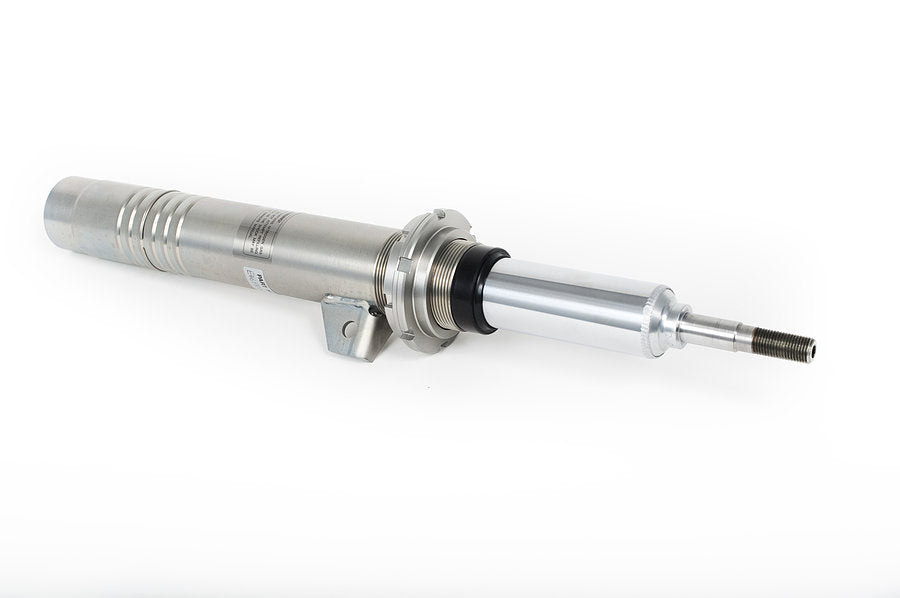

Front features:

• McPherson strut, upside down
• Regulation of rebound and compression damping via an adjuster
• spring preload adjustment
• Adjustment of the ride height via separate length adjustment
• Lowering at recommended setting approx. 15 - 35 mm
• spring rate 70 N/mm
• Use of the original strut mounts

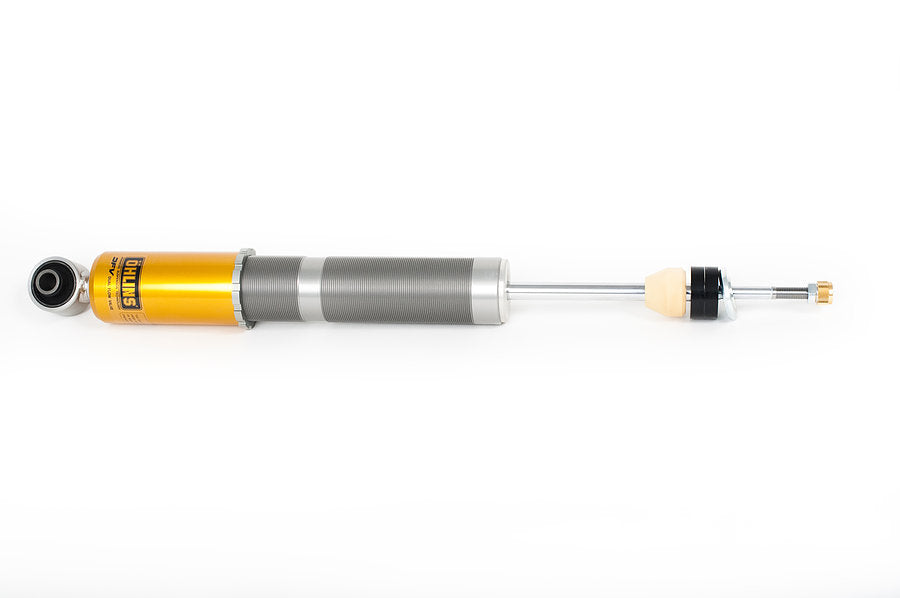

Rear features:

• Conventional shock absorber
• Regulation of rebound and compression damping via an adjuster
• spring preload adjustment
• Adjustment of the ride height via separate length adjustment
• Lowering at recommended setting approx. 5 - 30 mm
• spring rate 110 N/mm
• Use of the original strut mounts

Scope of delivery:

• coilover suspension including springs and attachments
• hook wrench (tool for spring preload)
• operating and installation instructions
• sticker set

Suitable for the following vehicles

• BMW M3 (E46), year of manufacture 2000 – 2005

  • Type: E46
  • Variants: all
  • EG TG: e1*98/14*0150*00-04
  • General Parts Report
  • manufacturer suitability declaration (SUI)
  • GOCA (BE)
