Öhlins Road & Track coilover suspension Mercedes A45/A35 AMG (W177)

For more than 40 years, we have been committed to high-end motorsport and the most modern solutions in chassis technology. This long-standing tradition and experience is now also available for road cars all over the world. The goal of development was clear from the start - outstanding handling without compromising on comfort in everyday life. The time for compromises is over. The sophisticated lightweight construction with many aluminum parts characterizes our products, as does the salt spray test according to ISO 9227 and the 2-year, worldwide factory guarantee.

General characteristics:

• Patented DFV technology (double flow valve)
• Individually adjustable lowering
• Fully disassemblable for maintenance and repairs
• salt spray test according to ISO 9227
• 2-year warranty
• Approx. 10 kg weight saving compared to original chassis

Front features:

• McPherson strut, upside down
• Regulation of rebound and compression damping via an adjuster
• spring preload adjustment
• Separate length adjustment
• Lowering at recommended setting approx. 20 mm
• spring rate 80 N/mm
• Use of the original strut bearings

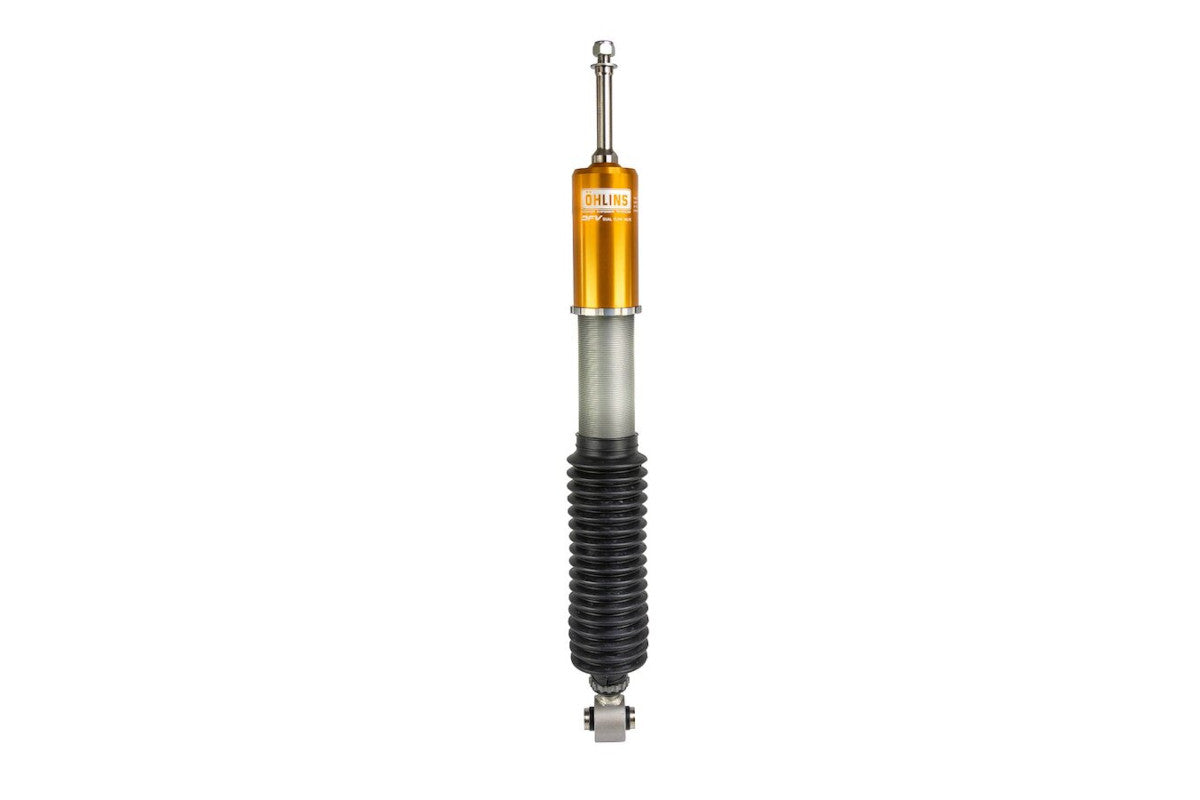

Rear features:

• Conventional shock absorber
• Regulation of rebound and compression damping via an adjuster
• spring preload adjustment
• Separate length adjustment
• Lowering at recommended setting approx. 15 mm
• spring rate 110 N/mm
• Use of the original strut mounts

Scope of delivery:

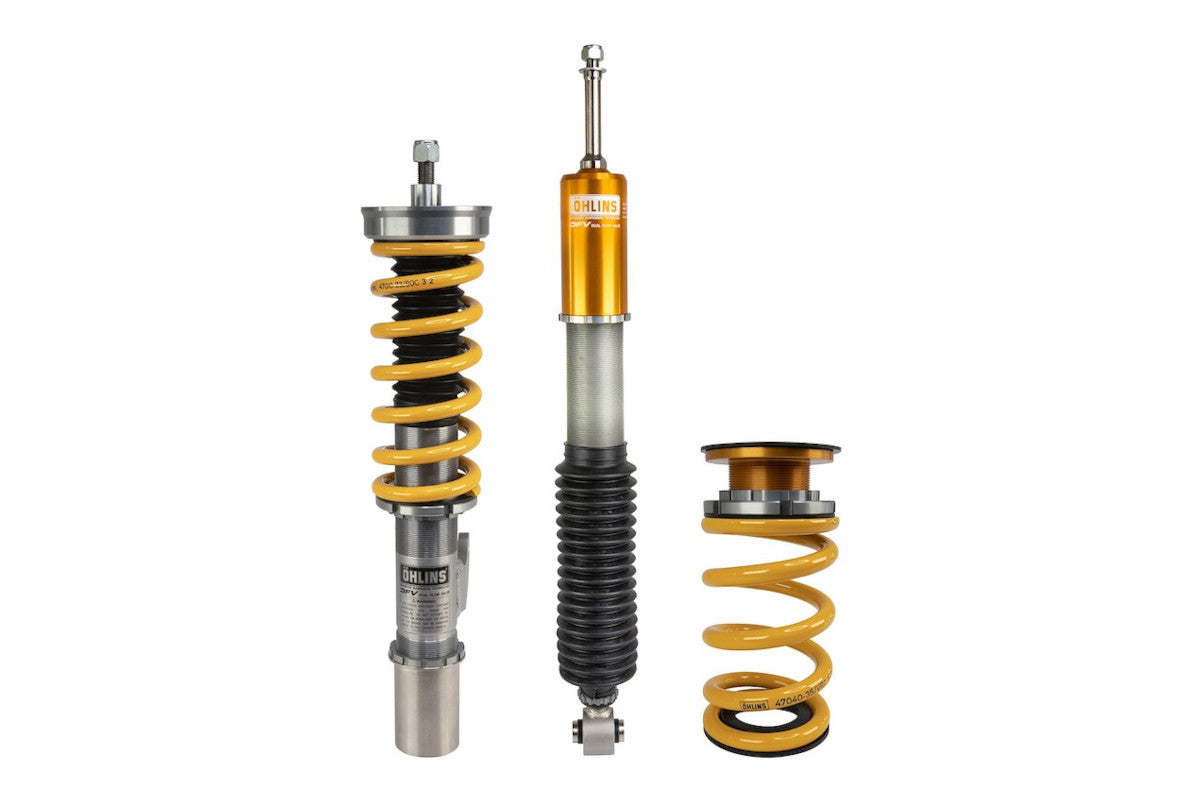

• coilover suspension including springs and attachments
• hook wrench (tool for spring preload)
• operating and installation instructions
• sticker set

Cancellation kits are not included and must be ordered separately.

Suitable for the following vehicles

• AMG A35 (W177), year of manufacture 2018 –

  • Type: W177
  • Variants: all
  • General parts report in preparation
  • manufacturer suitability declaration (SUI)
  • GOCA in preparation (BE)

• Mercedes-Benz A35 AMG (W177), year of manufacture 2018 –

  • Type: W177
  • Variants: all
  • General parts report in preparation
  • manufacturer suitability declaration (SUI)
  • GOCA in preparation (BE)

• AMG A45 (W177), year of manufacture 2019 –

  • Type: W177
  • Variants: all
  • General parts report in preparation
  • manufacturer suitability declaration (SUI)
  • GOCA in preparation (BE)

• Mercedes-Benz A45 AMG (W177), year of manufacture 2019 –

  • Type: W177
  • Variants: all
  • General parts report in preparation
  • manufacturer suitability declaration (SUI)
  • GOCA in preparation (BE)
