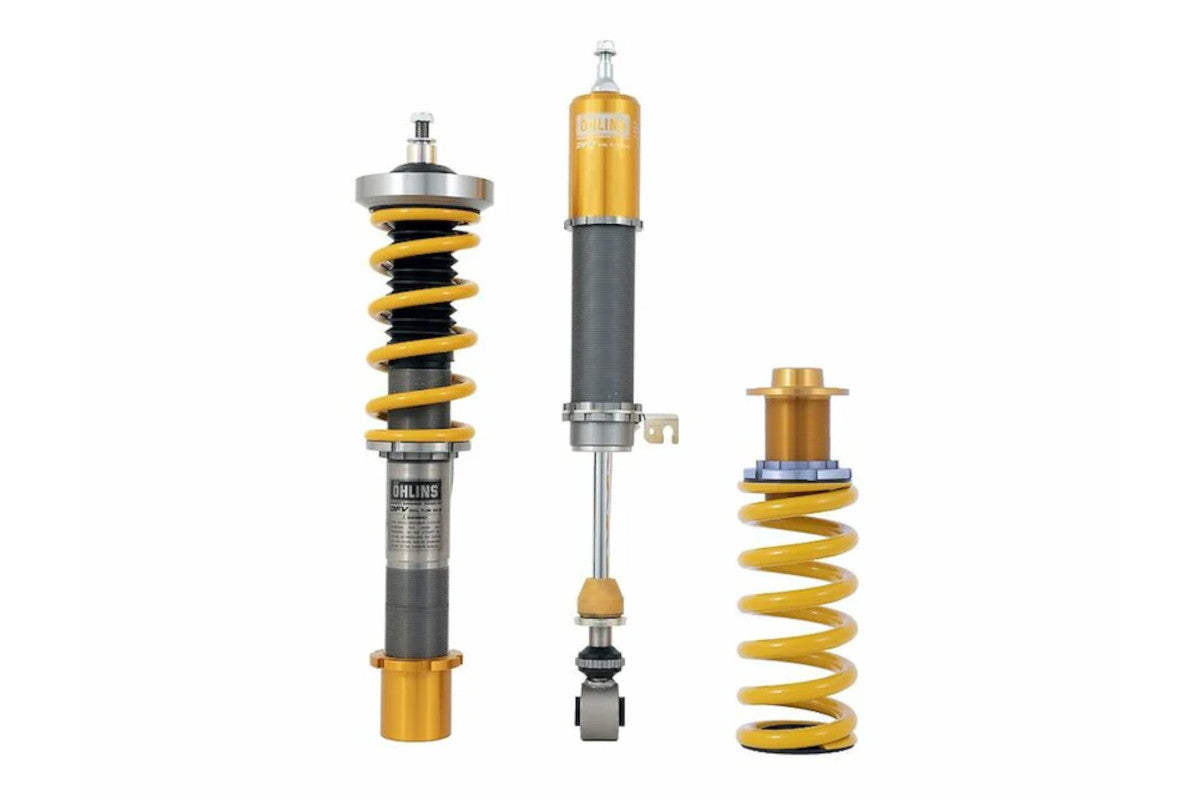

Öhlins Road & Track coilover suspension Toyota Supra (J29) TOS MU00S1

For more than 40 years, we have been committed to high-end motorsport and the most modern solutions in chassis technology. This long-standing tradition and experience is now also available for road cars all over the world. The goal of development was clear from the start - outstanding handling without compromising on comfort in everyday life. The time for compromises is over. The sophisticated lightweight construction with many aluminum parts characterizes our products, as does the salt spray test according to ISO 9227 and the 2-year, worldwide factory guarantee.

General characteristics:

• DFV technology (double-flow valve)
• Individually adjustable lowering
• Fully disassemblable for maintenance and repair
• salt spray test according to ISO 9227
• 2-year warranty

Front features:

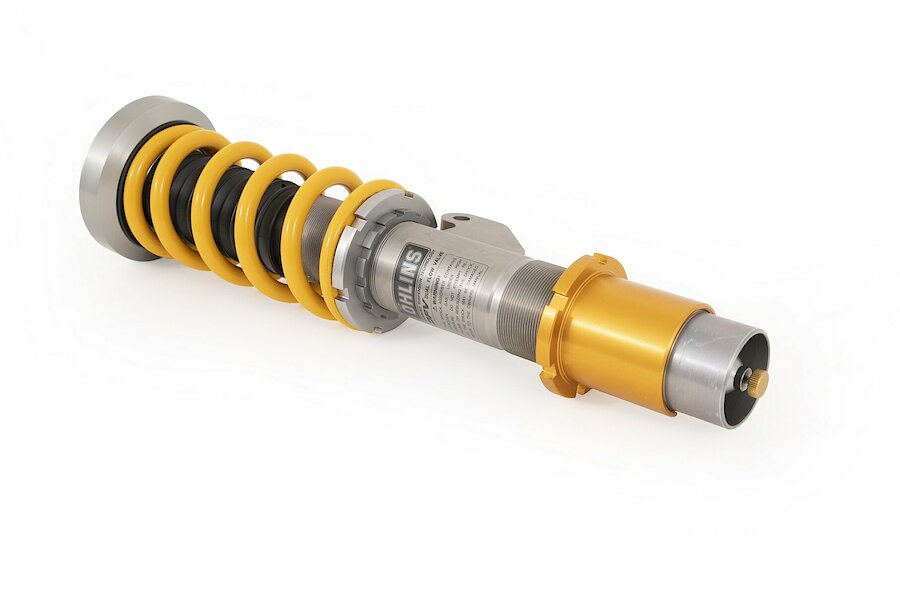

• McPherson strut, upside down
• Regulation of rebound and compression damping via an adjuster
• spring preload adjustment
• Adjustment of the ride height via separate length adjustment
• Lowering at recommended setting approx. 20 mm
• spring rate 90 N/mm
• Use of the original strut bearings

Rear features:

• Conventional shock absorber
• Regulation of rebound and compression damping via an adjuster
• spring preload adjustment
• Adjustment of the ride height via separate length adjustment
• Lowering at recommended setting approx. 20 mm
• spring rate 160 N/mm
• Use of the original strut bearings

Scope of delivery:

• coilover suspension including springs and attachments
• hook wrench (tool for spring preload)
• operating and installation instructions

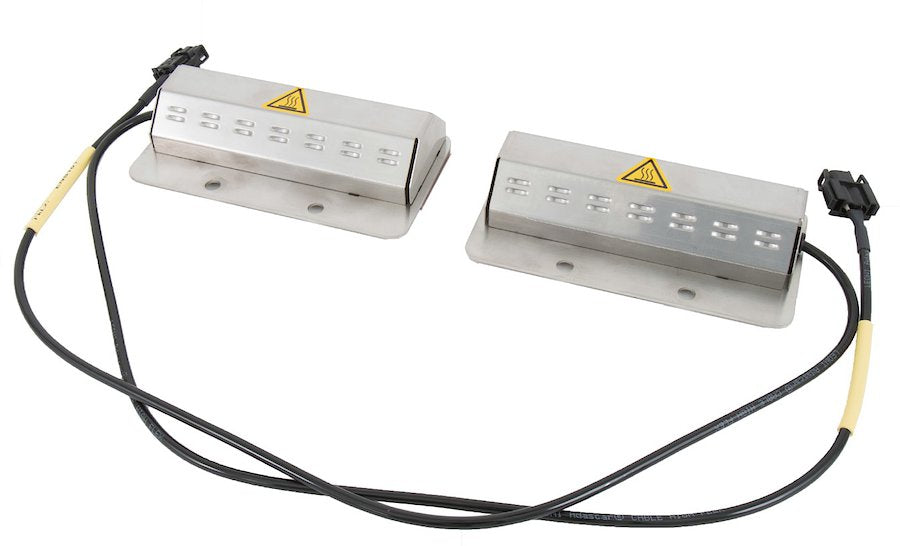

EDC Cancellation Kit:

• Öhlins EDC Cancellation Kit: Item No. 35020-30

Cancellation kits are not included and must be ordered separately.

Suitable for the following vehicles

• Toyota Supra (J29), 2019 –

  • Without parts certificate (Germany)
  • manufacturer suitability declaration (SUI)
